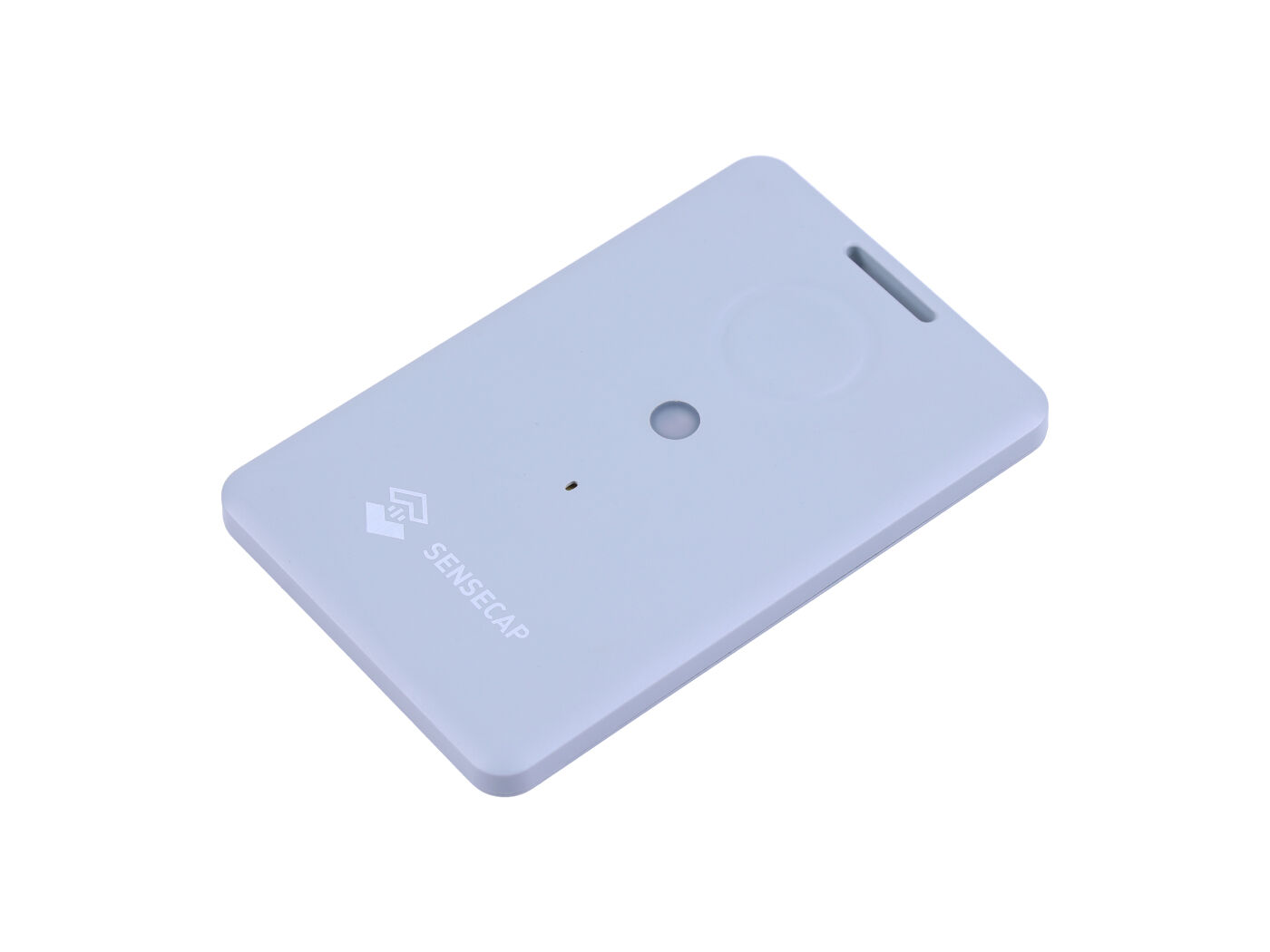

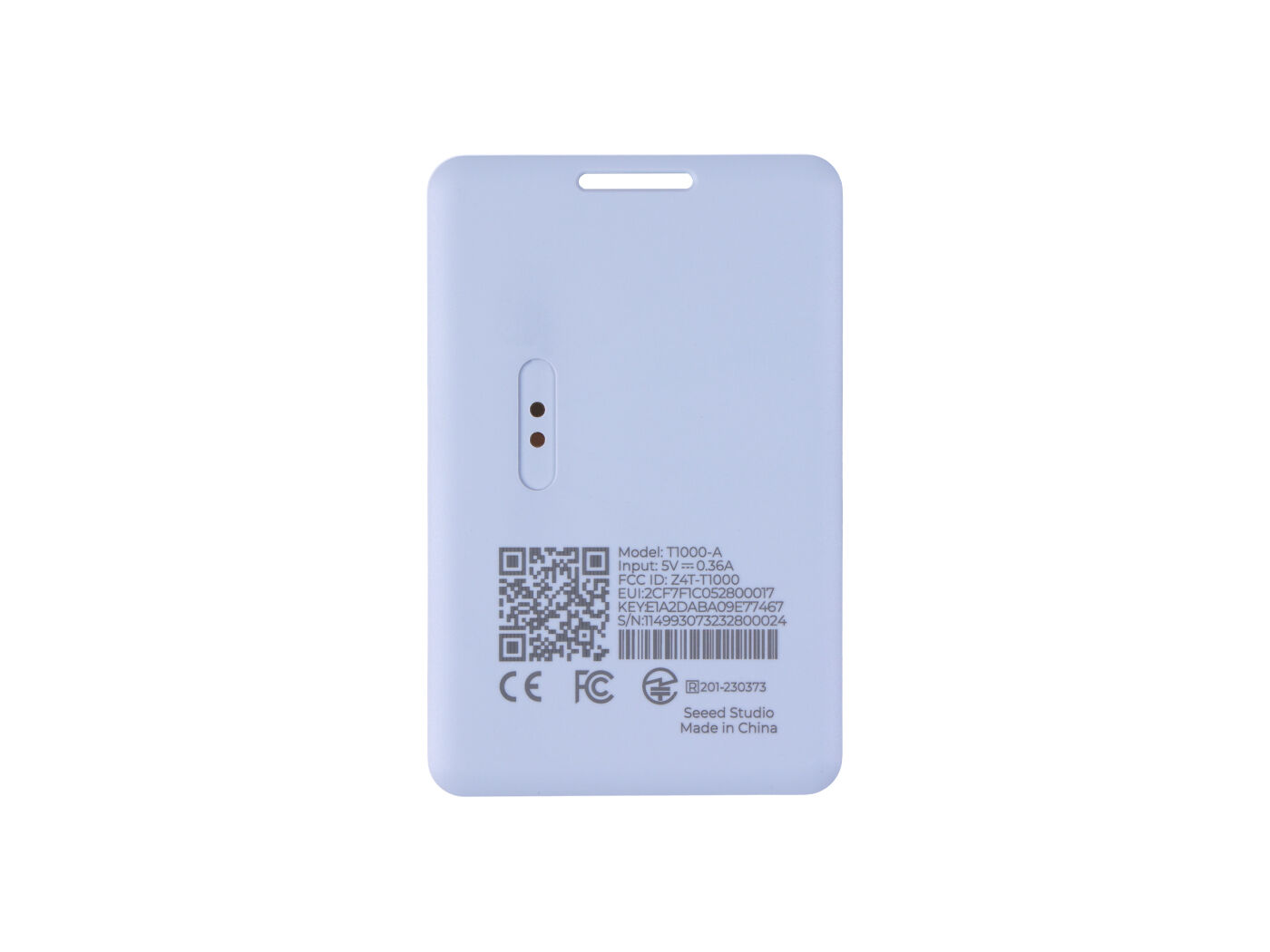

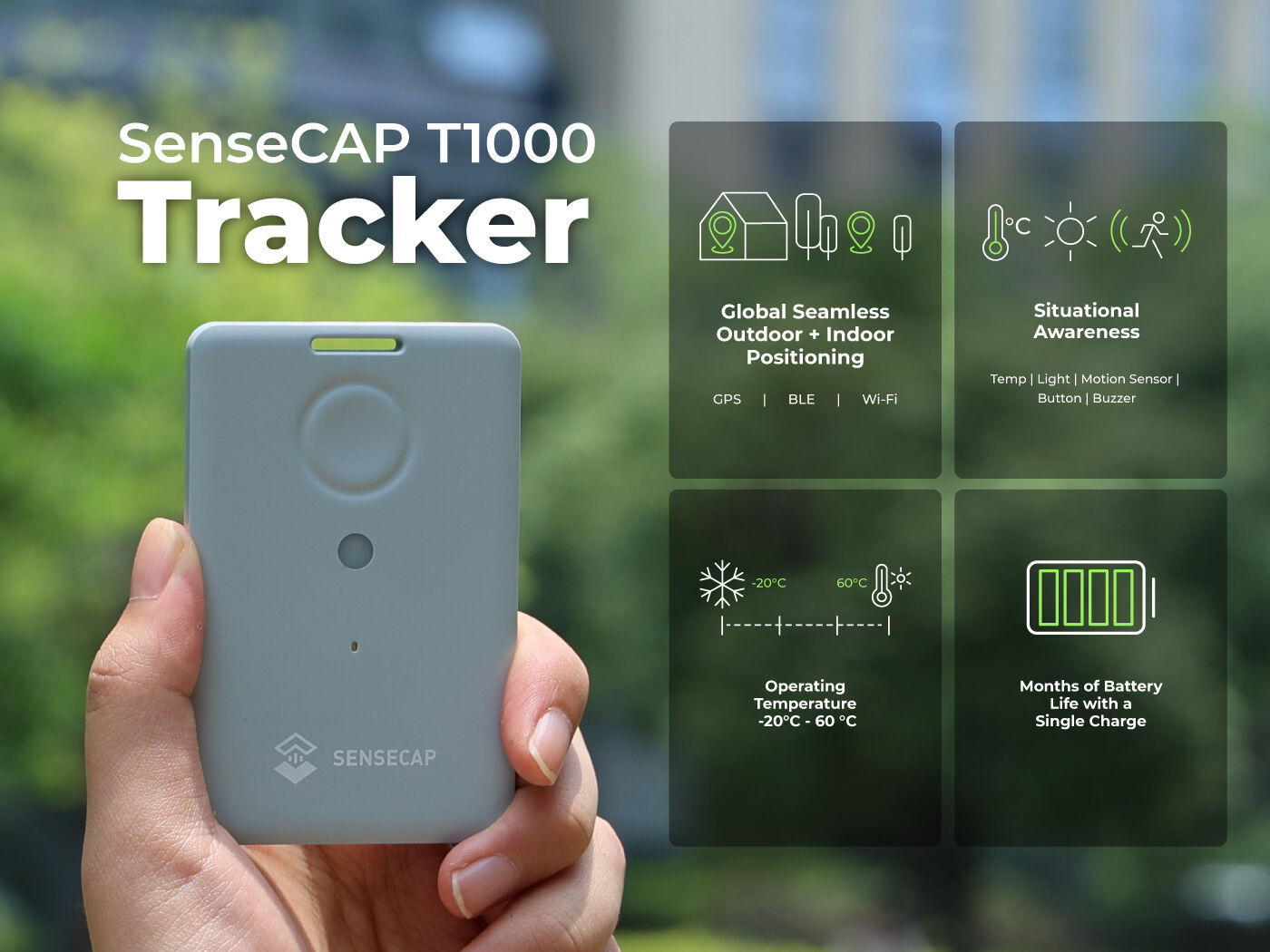

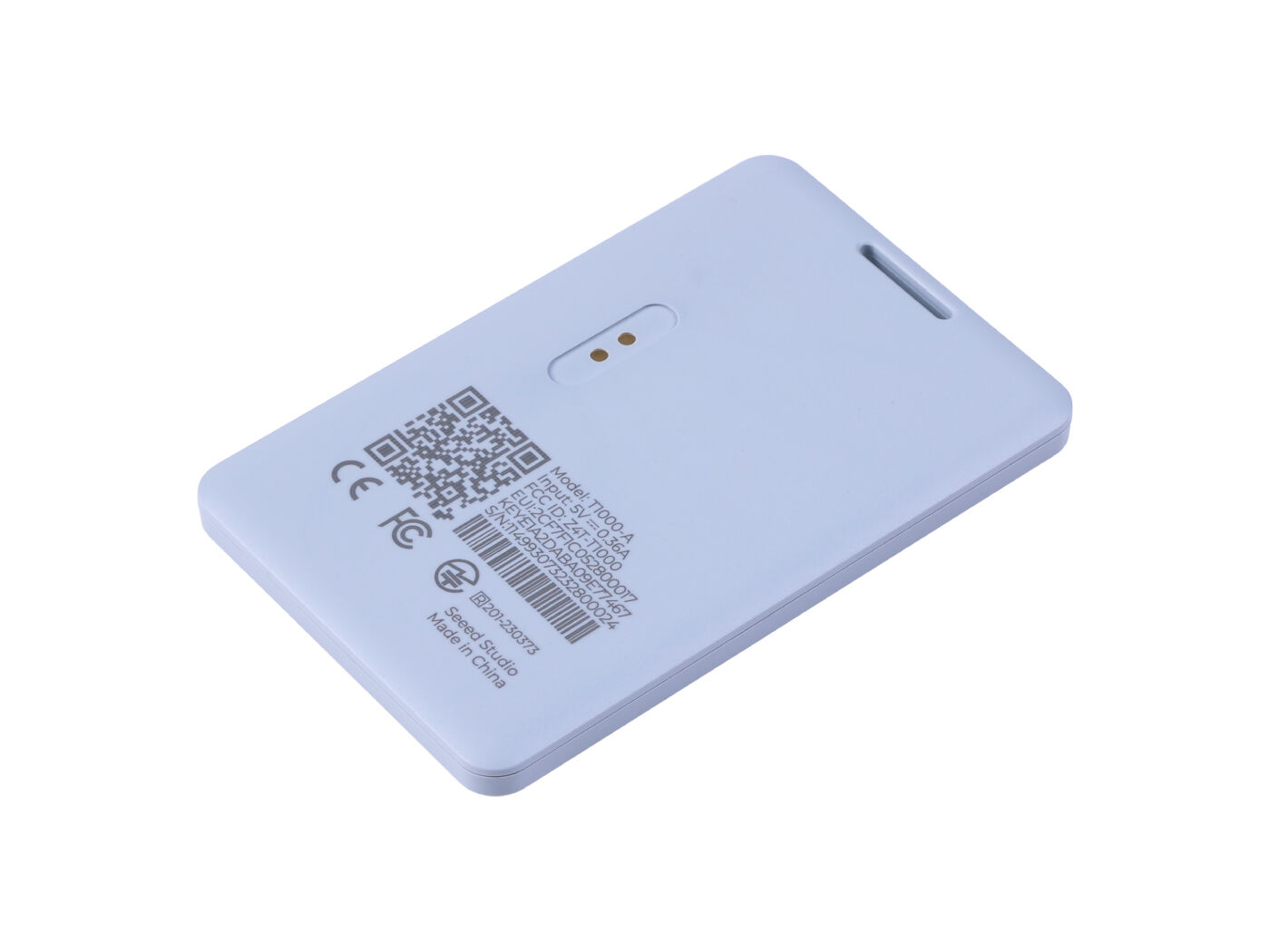

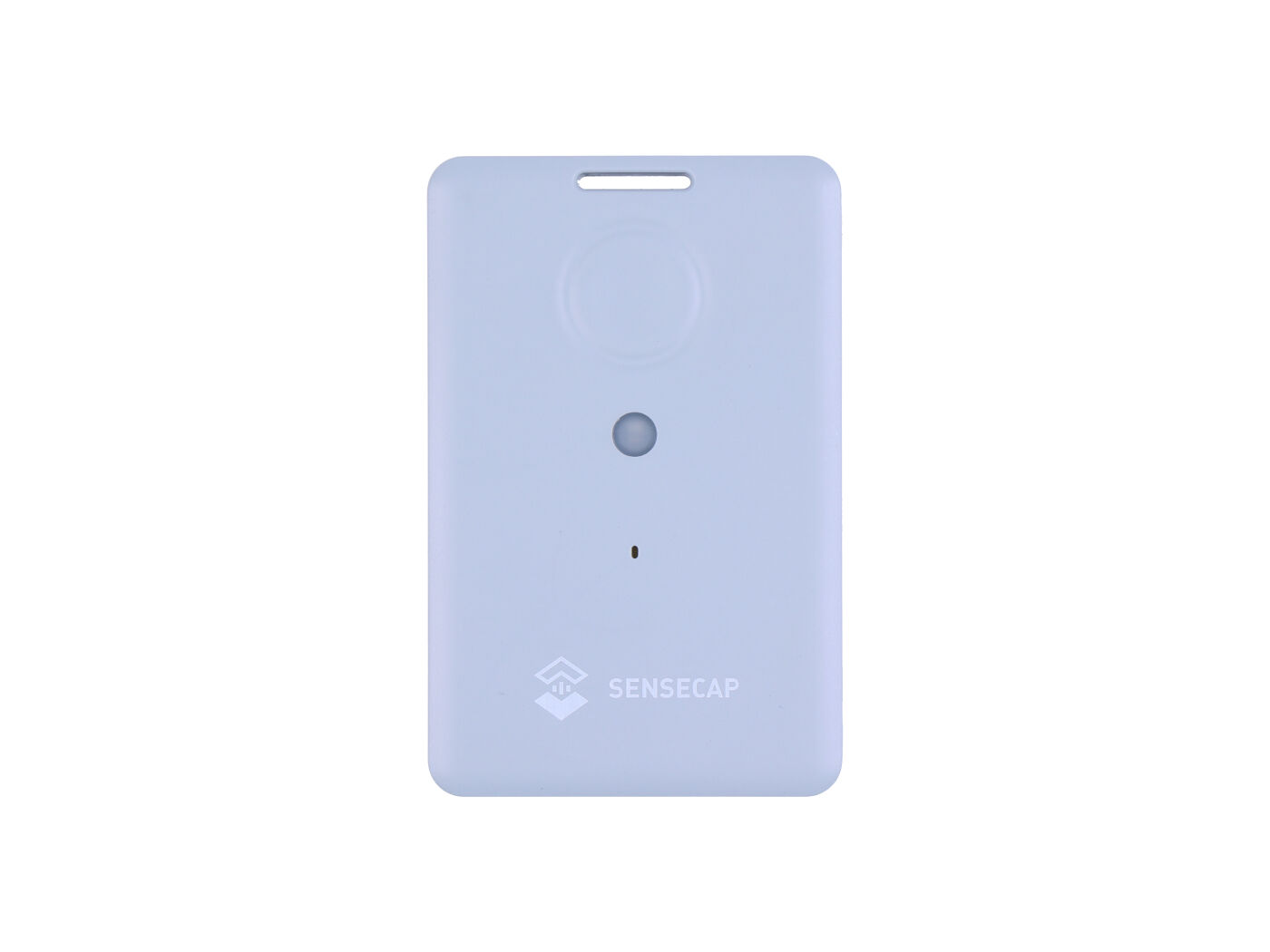

SenseCAP T1000-A LoRaWAN tracker for Crankk
The SenseCAP T1000-A Tracker, as compact as a credit card and easily onboardable to the Crankk network, effortlessly fits into your pocket or attaches to your assets. It’s equipped with GPS, Bluetooth and Wi-Fi for seamless indoor and outdoor positioning. Beyond just location tracking, it observes parameters like temperature, brightness and movement. With an emergency button and buzzer and a battery life that stretches for months on a single charge, it assures reliable tracking across various applications.
To onboard the SenseCAP T1000-A to the Crankk network, navigate to the ‘sensors’ tab in the left hand menu of your Crankk User Dashboard, click ‘add sensor’ and follow the on screen instructions. Check out this wiki for a step-by-step tutorial on setting up your Sensecap T-1000A
Product Model T1000-A
LoRaWAN® (v1.0.4 Class A)
Bluetooth v5.1, setting via SenseCraft App
LoRaWAN Channel Plan EU868 only
Temperature range: -20 to 60℃ ; Accuracy: ± 1℃ (Resolution: 0.1℃)
Light 0 to 100% (0 is dark, 100% is brightest )
3-Axis Accelerometer to detect movement
1*LED and 1* buzzer to indicate status
1*Button to operate and trigger events(SOS)
Antenna Internal (GNSS/LoRa/Wi-Fi/BLE)
Communication Distance 2 to 5km (depending on gateway antenna, installation, and environments)
IP Rating IP65

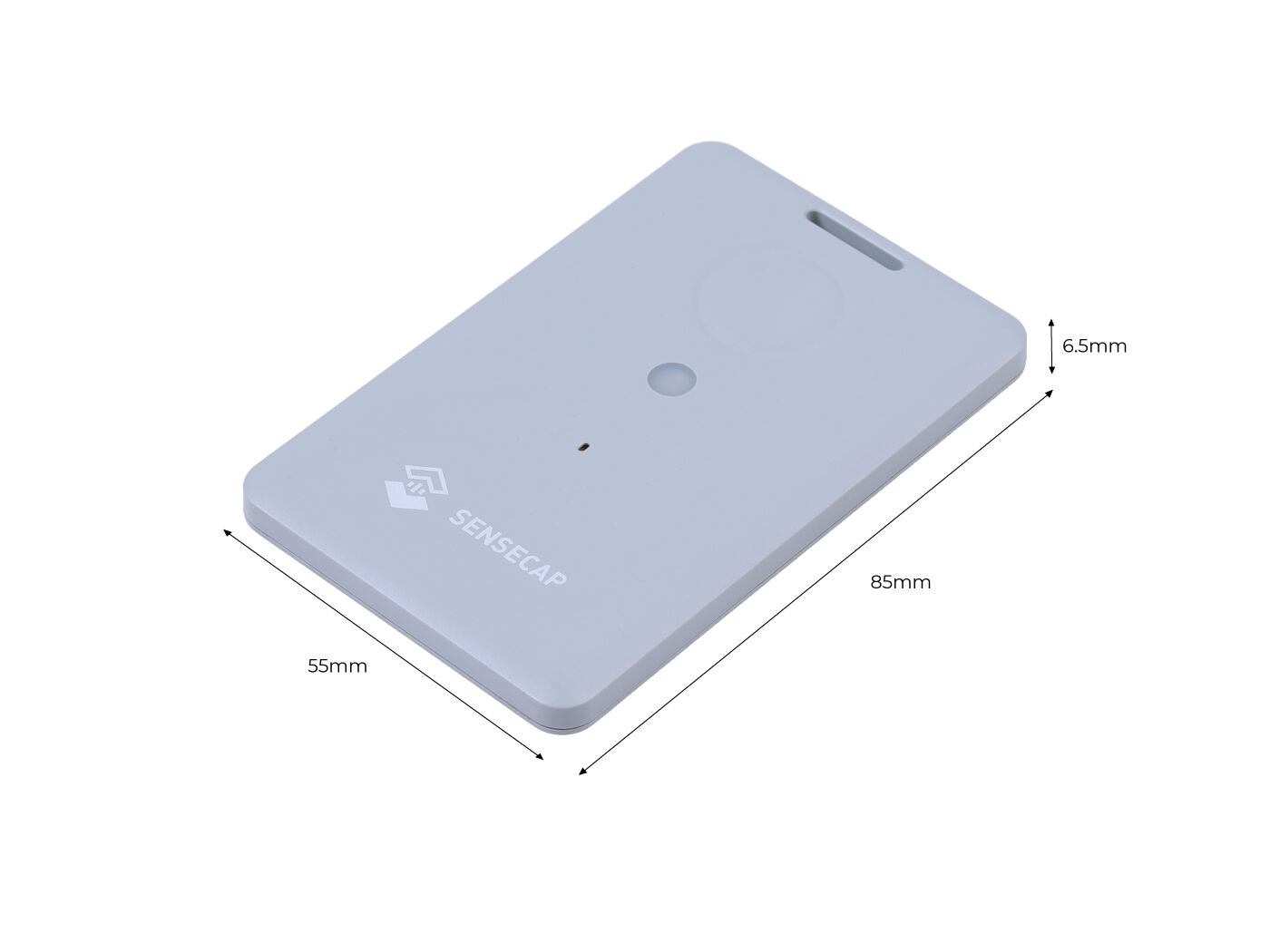

Dimensions 85 x 55 x 6.5 mm
Device Weight 32g
Operating Temperature -20℃ to +60℃
Operating Humidity 5% – 95% (No condensation)
Certification CE /FCC /TELEC /RoHS /REACH
GNSS Constellation T1000-A/B: GPS/GLONASS/Galileo/ BeiDou/QZSS
GNSS Sensitivity -145dBm cold start / -160 dBm Tracking
GNSS Location Accuracy ~1m CEP, GPS, -130dBm
Wi-Fi Positioning Passive scanning, uploads the scanned 4 MAC addresses
Bluetooth Positioning uploads the scanned 3 best signal MAC addresses of Beacon
Data Cache 1000 data when there is no LoRaWAN network
Battery Capacity Rechargeable lithium battery, 700mAh
*Battery Life Estimates 4 months on a single charge(uplink every 1 hour, only GNSS data)
Battery Life Monitoring Periodic uplink battery level

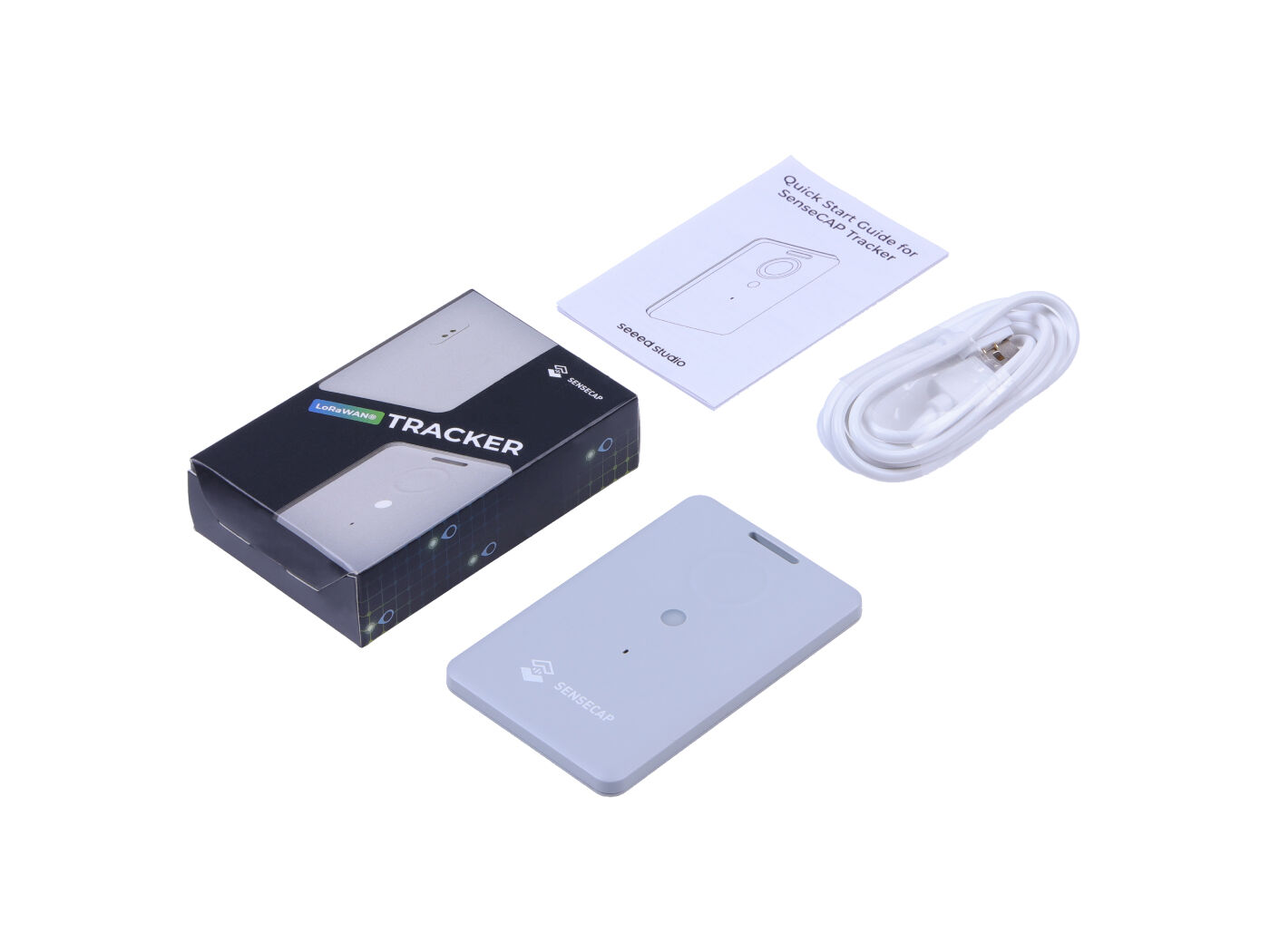

Charge Cable (Adapter not included) USB magnetic charging cable, 1 meter
Power Input Voltage 4.7 to 5.5V DC
Charging Temperature 0 to +45℃ (Beyond the temperature range, the charge will be limited, and the LED will blink quickly)
Standby: only heartbeat uplink; Periodic: upload location in intervals; Event: modify the interval by temperature, light and motion(start, end, shock, motionless timeout);
Data Storage: over 1000 location data records store on the device when there is no LoRaWAN® coverage
App Device configuration via SenseCraft App
* Battery life depends on temperature, installation, location interval, network coverage and sensor settings.
