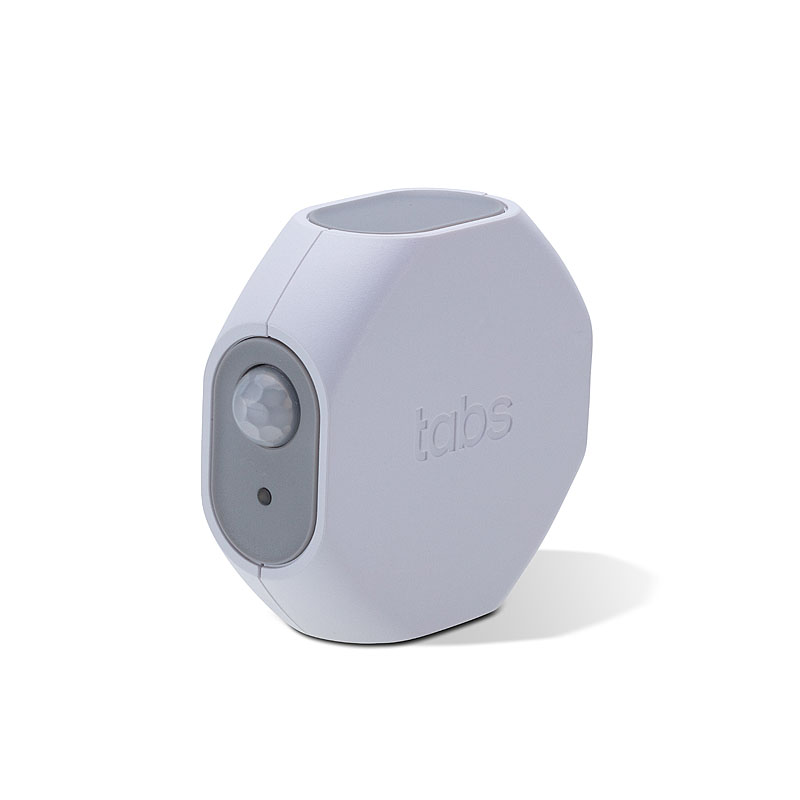

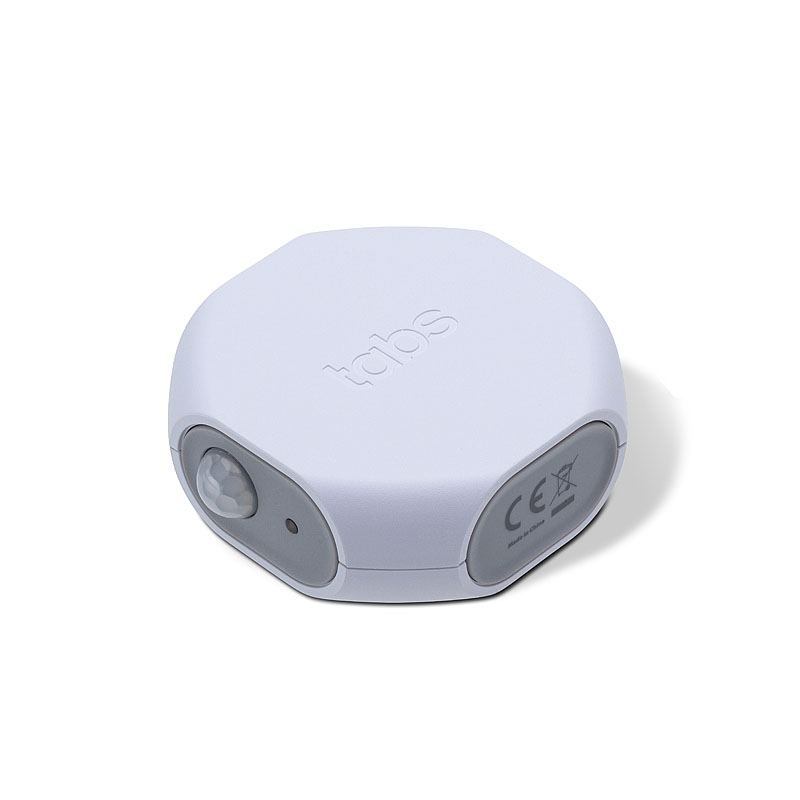

Browan TBMS100 Motion Sensor
The Browan TBMS100 Motion Sensor is a PIR motion sensor designed to detect occupancy or movement in homes or buildings for security and efficient facility management. It helps optimise the utilisation of spaces like desks, conference rooms, bathrooms or home environments.
To onboard the Browan TBMS100 to the Crankk network, follow the steps provided in your Crankk User Dashboard. Navigate to the ‘sensors’ tab in the left hand menu, click ‘add sensor’ and follow the on screen instructions.
The TBMS100 doesn’t have a QR code for onboarding. Instead, the provisioning information such as JoinEUI and DevEUI can be found on the back of the device. The AppKey, which is sensitive information, is provided inside the package to the person who purchased it.
Producs details:
-
Model Name TBMS100
-
Frequency US 902~928 MHz only!
-
Protocol LoRaWAN® 1.0.3
-
Transmit RF Power US: +19dBm
-
Antenna Gain -2dBi Peak, -5dBi Avg
-
Receive Sensitivity -135dBm
-
Operation Temperature 0 to 50°C
-
Environmental Rating IP50 equivalent
-
Power Type 1⁄2 AA Li-SOCl2 Battery x 1, 3.6V, 1200mAh
-
Battery Lifetime up to 16 months, based on uplink frequency and operating temperature.
-
Average Current 135mA maximum / 100uA minimum
-
Dimension L:50 x D:20 x W:50mm
-
Weight 30g without battery, 40g with battery
-
Sensor Dual Passive Infrared detectors: Detection Angle: 123°H x 93°V; Detection Distance: 7 meters
